MC25C Corrugated Panel

Composited by aluminum skin and corrugated core, Winsom corrugated panel MC25C features simple structure, environmental-protection, super flatness and high strength. With specific installation system, MC25C is easily demounted and replaced by individual panels. Allow different panel width and colors to match randomly to present different design effect. Besides, perforated acoustic design is also available upon request to achieve sound absorption and noise reduction effect.

Width:  600mm/900mm/1000mm/1200mm

Length:  depends on local wind load, architectural height and actual request

Outer skin: AA3003  Thickness: 0.7/0.8mm  Bending height: 25mm

Corrugated core:AA3003  Thickness: 0.2mm  Height: 6mm

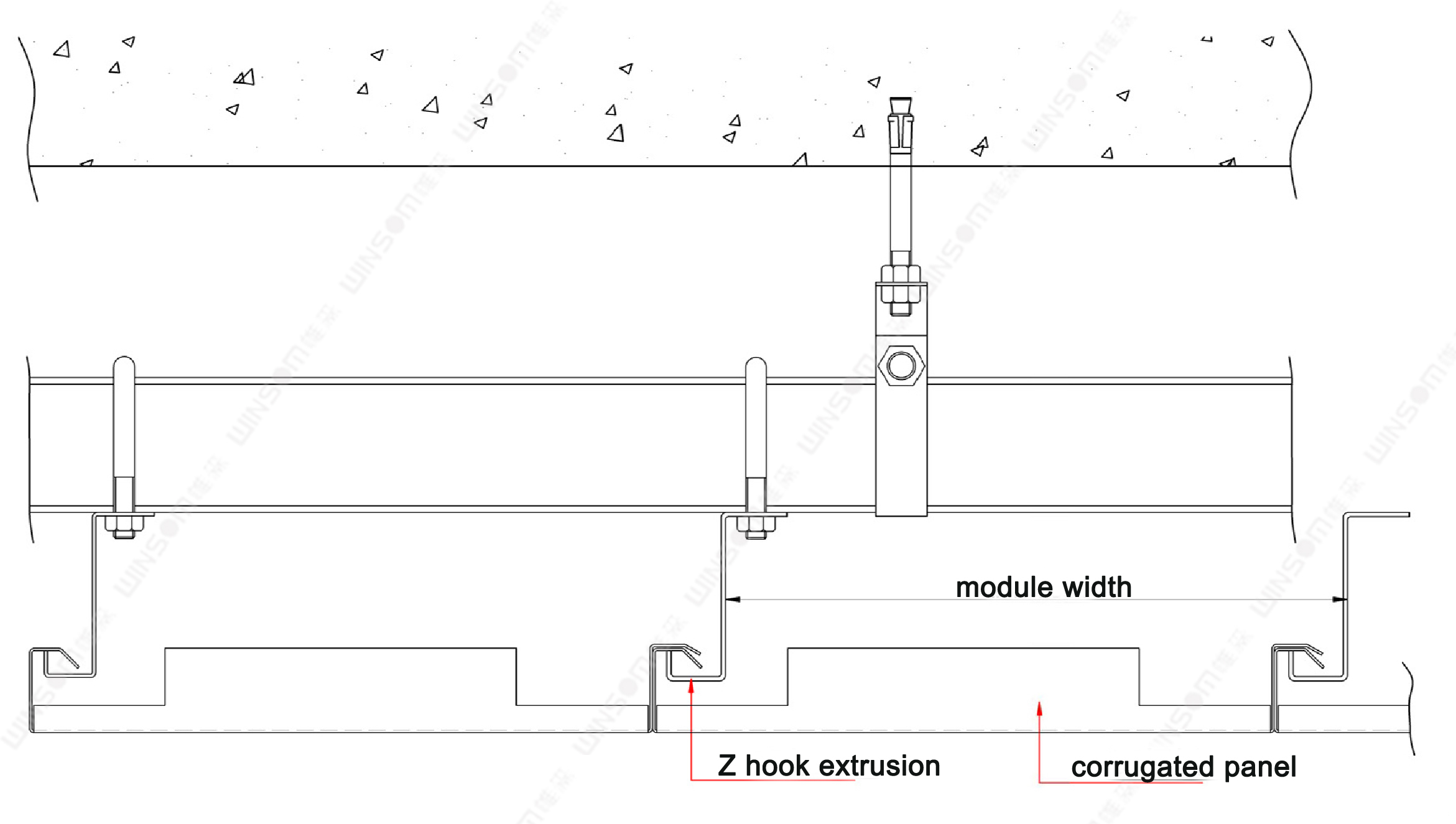

Support:  customize specific support

Joint width: closed joint
