Stone Honeycomb Panel
Stone Honeycomb Panel

Through borrowing foreign advanced technology and continuous practices, we successfully developed EIC/REIC stone honeycomb panel system. A 7 mm natural stone veneer is bonded to an aluminium honeycomb panel and matching specific installation system, it not only keeps natural stone texture but also improves installation strength greatly. Compared with a traditional stone cladding system, it saves stone resources 60%, installation time 50% and reduces base loading 60%. The maximum standard dimension we can manufacture is 2800mm L x 1400mm W, which provides much more design inspiration for architects.

Composing:  natural stone, adhesive, 20mm thick of aluminium honeycomb panel

Stone:  marble,granite and sandstone

Overall thickness:  27mm

Maximum standard dimension:  2800mm L * 1400mm W

Installation method:  mounting by fixing clamp

Installation direction:  horizontal /vertical

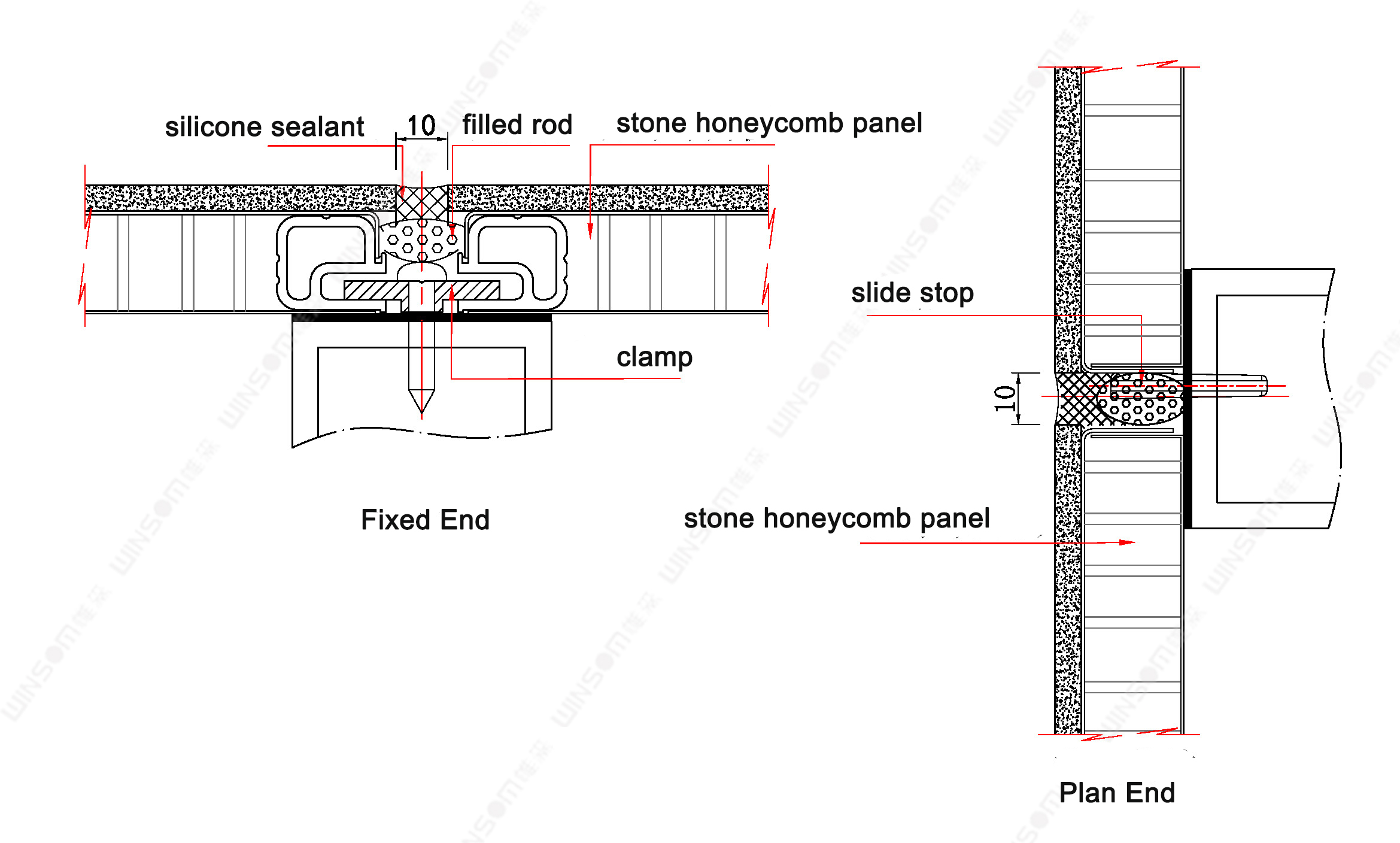

Joint types:  silicone joint, open joint, dry & sealed joint
