PIC-J3 flat joint, dry & sealed aluminum honeycomb panel curtain wall system

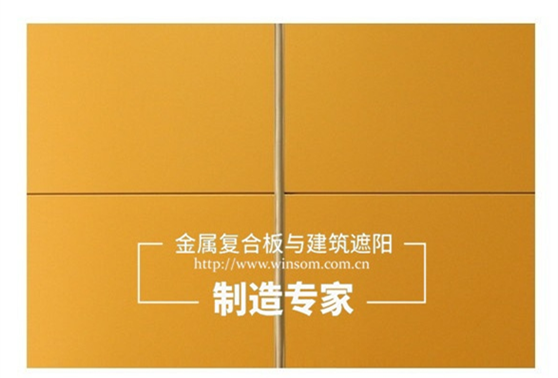

Flat joint design with distinctive

Winsom PIC-J3 flat joint, dry & sealed aluminum honeycomb panel curtain wall system is favored by architects. 3mm joint width, sealed by EPDM dry seal gasket; clean and tidy, it can achieve airtightness and water tightness of curtain wall without silicone; besides, installation is not limited by the seasons, which solves the problem can not make silicone on construction site in North area in winter.

Four properties certification of curtain wall

Four properties test of curtain wall certificated by National authority:air tightness and water tightness up to the highest level 4 and level 5, wind pressure resistance level 8 and in-plane deformation level 3, which meets national standard of metal curtain wall.

Applicable panel types

Aluminum honeycomb panel, anodized honeycomb panel, stainless steel honeycomb panel, copper honeycomb panel, copper aluminum hot melt composite honeycomb panel, stone honeycomb panel, glass honeycomb panel, ceramic honeycomb panel, impact honeycomb panel

Product advantages

Meet the thermal movement of metal curtain wall to prevent deformation and sustained flatness;

No need riveting, without any mechanical damages for panel surface, safer and more durable

3mm flat joint, big panel design, more concise and aesthetic for building facade；

With EDPM dry seal gasket to seal and waterproof, achieves airtightness and water tightness and meets four properties of curtain wall.

Breakthrough innovative technology to solve industry pain points

No scaffold for installation, the breakthrough innovative technology not only ensures the project schedule, but also effectively saves the installation cost. It is applicable to cornices and other building areas.

Simple and advanced flat joint design is adopted to create a curtain wall system with both functionality and aesthetics.

Flat joint also solves architect’s another headache problem of "silicone oil diffusion polluting the panel surface”.

This innovative design helps you create high-quality classic architectural works.

INSTALLATION SYSTEM

Standard details of PICA-J3 flat joint, dry & sealed honeycomb panel curtain wall system

(install from front side)

1. EPDM sealed gasket

2. Neoprene

3. Screw

4. Clamp

5. Support

6. PICA aluminum honeycomb panel

7. Insulation

8. Seal gasket

Standard details of PICA-J3 flat joint, dry & sealed honeycomb panel curtain wall system

(install from back side)

1. PICB aluminum honeycomb panel

2. EPDM seal gasket

3. M8 hexagonal bolt

4. Neoprene

5. Angle steel

6. Hexagonal nut

7. Aluminum strip

PRODUCT

APPLICAION CASES

Chengdu TianfuInternational Airport

Installed from the front side, completed honeycomb panel installation for cornice without scaffold, and no affected construction schedule under the eaves and saved scaffold cost.

Terminal building of Tianjin Binhai Airport

Erlitou Site Museum of the Xia Capital
