FS-75 Ventilation Shading System
Beyond the traditional louver in design, FS-75 storm louver integrates exquisite and unique design and combines the functions of ventilation, sun shading,waterproof, dust-proof, anti-theft, insect & mouse prevention to create a comfortable and aesthetic sunshade experience.
Fin substrate:aluminum alloy 6063 -T5
Product specification:
Width≤1500mm
Height≤2000mm
Installation method:unitized type installation or linear type installation with large area
Fins spacing:
FS-75A：75mm-90mm
FS-75B：70mm-75mm
FS-75C：70mm—75mm
Insect prevention net: stainless steel, wire diameter 0.17-0.21, mesh 1.2mm
1. Multiple functions: integrates ventilation, sunshade, waterproof, dust proof, anti-theft, insect & mouse prevention;
2. Stream lined fin design, excellent decorative effect for building;
3. Simple installation, easy to maintain
4. High quality material with anti-oxidation and anti-corrosion,green, safe, moredurable.
01

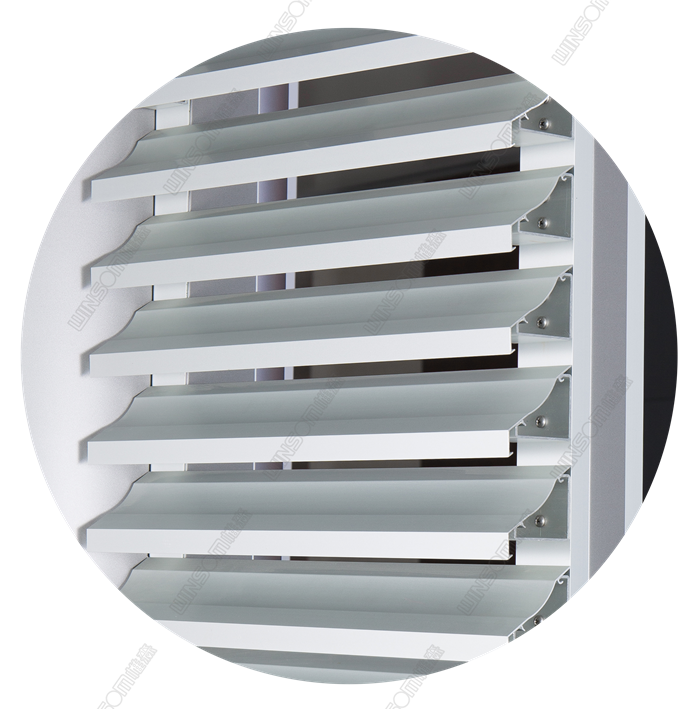

FS-75A Ventilation Shading System
Simple and generous appearance, slight arc fin shape is conducive to air circulation and indoor ventilation, increase three-dimensional and layered sense of the building and create a strong streamlined decoration effect.
02
FS-75B Ventilation Shading System
On the foundation of FS-75A,FS-75B has additional blades inside. Besides, there is small water drainage flashing in the fins,which could prevent droplets from splashing or air moisture into the room,creating cleaning and refreshing indoor environment.
03

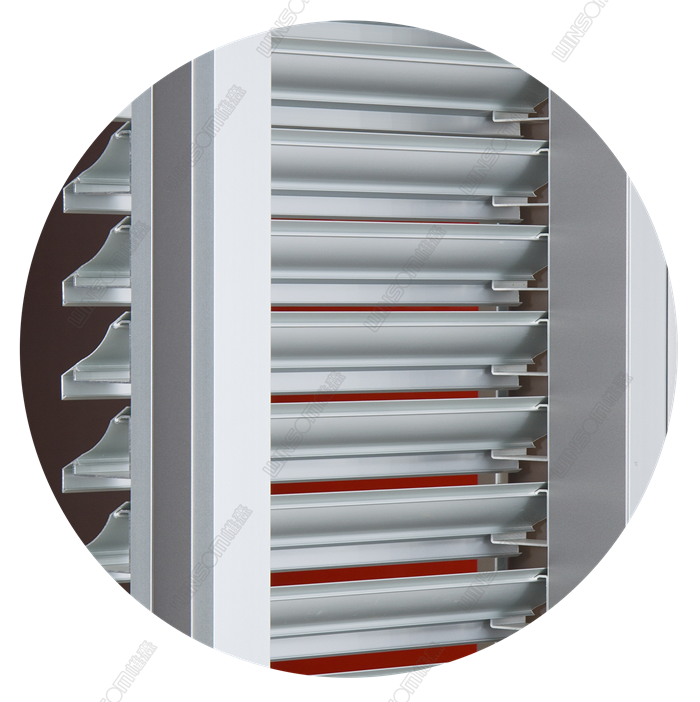

FS-75C VentilationShading System
Fin shape of FS-75C storm louver is special Chinese character “人” shape. Double side water proof design could completely blocks the water out of the window, solve the problem of not being able to open window in the rainy days, create comfortable indoor environment. The stream-lined curved fins bring flowing fashion aesthetic to architecture decoration.
