SS-WP Waterproof Sun Shading System---Achieve Dual Functions of Sun Shading and Wall

Meaning of Sun Shading

As an important part for green energy-saving building which already being a key factor for social sustainable development, on one hand, architectural sun louver blocks direct sunlight,controls heat transmission entering indoor, reduces indoor temperature, greatly decrease peak loading of air condition; on the other hand, moderate of sunlight makes people feel comfortable, good for highest visual effect of human body and normal operation for physiology, lets people feel pleasure.

Dual Functions of Sun Shading and Wall

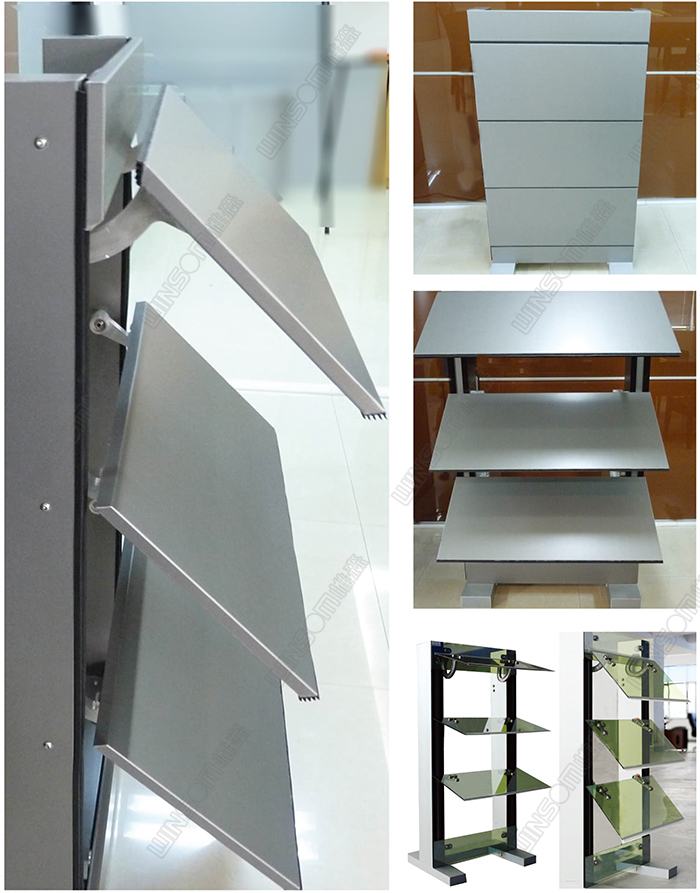

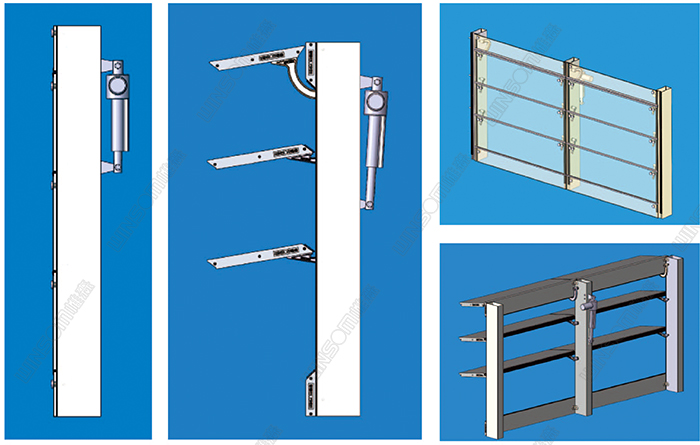

SS-WP waterproof sun louver system integrates with sunshading and wall. On one hand, electric driven system can adjust blade angle from 0° to 125° to achieve effective control for light and heat, on the other hand, with strict waterproof sealing structure, setting watertight block, waterproof block, stop bar and drainage system between support and blades, it become a sealing and waterproof wall system while blades closing.

SS-WP waterproofed sun shading is integrated shading system. Blades, installation accessories and support are systematic supply. Metal blade or glass blade creates different styles of sun shading system.

Intelligent Sun Shading Control

Intelligent control makes waterproof sun shading system up to a new height. Through light and wind pressure sensors, temperature sensor to obtain sunlight intensity, wind pressure data on building surface and temperature inside and outside, combined with intelligent operation system to achieve high automation for sun shading; besides, it also can connect entire building management system to regulate heating, cooling, lighting and firefighting system.

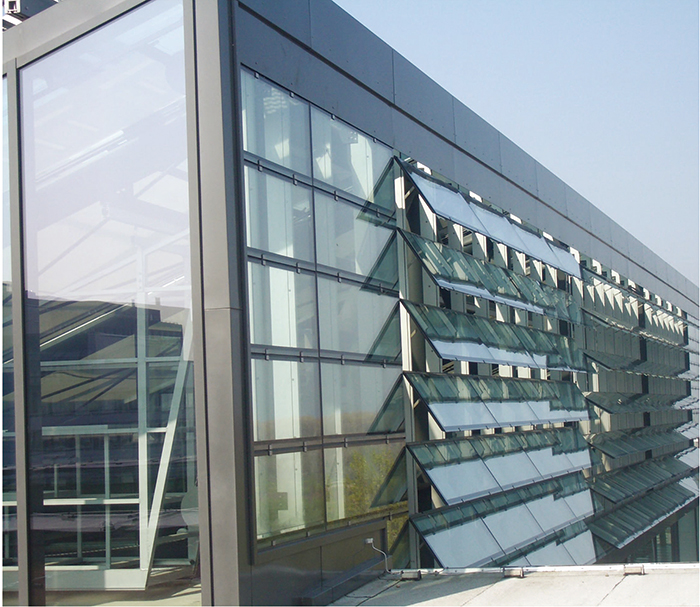

Application

SS-WP waterproofing sun shading is suitable for the places where higher requirement for permeability like stations, sport venues, parking lots, corridor, squares, which create an energy saving, comfortable and healthy place for clients.
